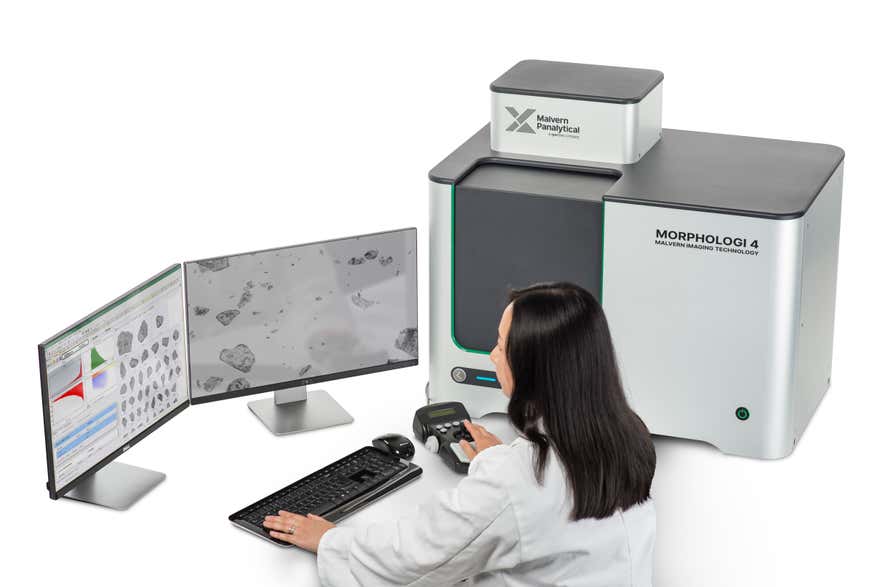

Morphologi 4-ID

Morphologi 4-ID 通过图像导向拉曼光谱 (MDRS) 提供对颗粒混合物的成分特定形态的详细描述。它在单个一体化平台中将自动颗粒成像与拉曼光谱相结合，助力解决复杂的颗粒表征问题。Morphologi 4-ID 软件可与 Wiley 的 KnowItAll® 拉曼识别专业软件平台无缝协作，快速识别您的拉曼光谱。

寻找更多信息？

要索取报价、更多信息或下载手册，请选择下面的选项。

联系应用支持 下载样本

用户手册

软件下载

28 April 2025

11.00

  • Software Re-branding to Malvern Panalytical
  • Windows 11 Support
  • Core Isolation Compatibility
  • Fixed 3 critical bugs on manual focusing, 1-click ID measurement, and plate tilt resurfacing
  • Improvements on focus coincidence test script
  • Fixed some ui bugs
  • Updated the environmental libraries and 3rd party tools
11.00

08 November 2023

10.34

Reverting to a previous driver version and improving the robustness of the image capture code and ability to restart an unresponsive camera to maintain ESD compliance.

10.34

11 August 2021

10.32

Version 10.32 fixes 2 critical bugs, the audit trail files are now protected from accidental modification and manual light

setting measurements which were prevented by v10.31 can be run again.

02 December 2020

10.31

This release improves the Installation Qualification (IQ) process with new Performance Verification (PV) and system

check reports for Morphological and ID components. Stability and security have also been

improved with new camera drivers and restrictions on custom calculation functionality.

10.31

23 June 2020

10.30

Improved spectral performance

  • Addition of option to collect a background spectrum at start of measurement. This feature improves the user’s workflow as it ensures a background spectrum is collected from the actual sample being analyzed at the start of the measurement process, preventing the possibility of an incorrect background being used.
  • Improvements to the Raman Spectra signal to noise when acquisition time is 2 minutes or longer.
10.30

12 February 2020

10.21

  • Enable full software functionality with non-English PC language settings (tested on English & French and verified on German and Japanese locales).
10.21

18 March 2019

10.20

  • 21 CFR Part 11 support
10.20

06 July 2018

10.10

  • Morphologi 4-ID instrument support
10.10

附件

在样品中适当分散单个颗粒和团聚物有助于生成稳定且可靠的结果。需要对颗粒进行良好的分散和具有代表性的取样。为此，Morphologi 4-ID 提供了多种分散选项。

简单、可重现的自动化样品分散
Morphologi 4-ID 配备集成式干粉分散装置。该装置可以简单且可重现的方式制备干粉样品。利用从软件内控制的独特压缩空气分散单元自动分配精确的样品量，从而每次均可实现可重现的样品分散。

可选配件 – 对悬浮颗粒进行分析
一系列仪器配件支持在显微镜载玻片、湿悬浮液或滤膜上制备样品，从而将Morphologi 4-ID的应用能力从干粉样品分散表征扩展到更广泛的样品处理场景。每个配件均可直接安装到自动化载物台区域，并可轻松从 Morphologi 软件中选择。

识别软件

KnowItAll® ID Expert software platform from Wiley

Wiley’s KnowItAll® ID Expert software platform works seamlessly with Malvern Panalytical’s Morphologi software to provide rapid identification of your Raman spectra.

分析悬浮颗粒时使用的配件

2-slide and 4-slide holders

‘Sandwiching’ a few μL of a suspension of smaller particles between a microscope slide and a cover slip is a traditional method of sample preparation for microscopy. Samples are presented in this form to the Morphologi G3-ID using either the 2-slide or 4-slide holder. Slides suitable for chemical identification applications are available.

Thin-path wet cell

The thin-path wet cell is designed for both morphological and chemical characterization of up to 100 μL of sample. It is ideal for applications such as the identification of subvisible particles in therapeutics (described by guidance in USP <787> and USP <788>), especially when a traditional membrane filtering approach may risk changing particles of interest, such as protein aggregates.

分滤膜上捕获的颗粒时使用的配件

25 mm and 47 mm diameter filter holders

Methods which are used to detect and characterize particles in suspension often rely on filtering the sample in order to capture particles on a membrane filter. Dedicated filter holders (25 mm or 47 mm diameter) and also the 2-slide holder (see above) allow samples on filter membranes to be presented directly to the Morphologi G3-ID for analysis.
Fused silica filters and holder

Fused silica filters and holder

Fused silica filters are designed to enable the analysis of filtered samples containing low-contrast particles, such as protein aggregates or contaminant particles.  The fused silica filters are housed in a support for ease of handling, and are presented to the Morphologi in the fused silica holder, which can hold up to 2 filters.

服务与支持

利用马尔文帕纳科服务计划保护您的投资，确保仪器保持高性能。

当您购买了马尔文帕纳科产品，我们明白，这仅是建立工作关系的第一步，而这种关系将伴随仪器的整个使用寿命。 根据您的需要，马尔文帕纳科将为您的业务提供支持。

帮助台

培训

  • 用户培训活动

软件下载

马尔文帕纳科服务选项 - 选择适合您的计划：

马尔文帕纳科白金计划

适用于需要仪器正常运行时间最大化并始终保持高性能的实验室。 一旦不幸发生事故，我们的最高级别响应以及“全包式”定价计划将涵盖这些意外维修的费用。

马尔文帕纳科黄金计划

保持仪器效率，以提高实验室的生产率。 仍然能够得到优先响应，加上专家级的技术和软件支持，使您的仪器保持高性能。

马尔文帕纳科青铜计划

适用于需要优化仪器性能的实验室，定期预防性维护是其重中之重。

白金计划黄金计划青铜计划
年度 PM/PV 测试
是
是
否
电话/邮件支持
是
是
否
优先响应
是
是
否
紧急停机上门服务*
是
是
否
包含零件
是
否
否
技术和软件支持
是
是
是
IQ/OQ（制药）***
是
是
是

*包含人工和差旅费用***需另外收费
