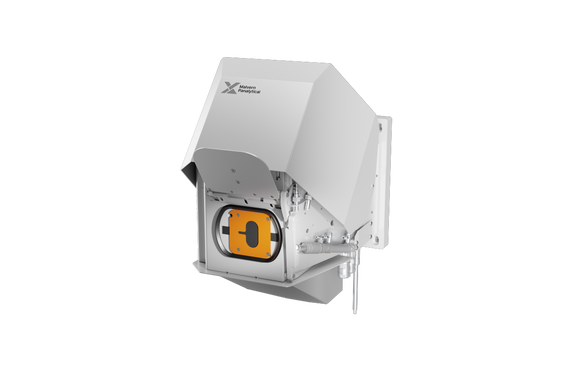

XRD-OEM

Fully automated in-line orientation and handling of ingots, boules, and pucks

Your specialist solution for automated in-line handling, machining, and measurement of ingots, boules, and panels. Optimized for performance in the harshest of environments, XRD-OEM is a robust solution that improves productivity, ensures quality control, and optimizes your production processes.

索取报价 要求演示 联系销售部门

Overview

XRD-OEM is a game-changer for your production processes. Built to withstand the challenging conditions of grinding and sawing, this X-ray diffraction instrument offers seamless integration with any processing system thanks to its industry-standard interfacing. XRD-OEM provides independent orientation measurement of ingots, boules, or panels, enabling measurements on both flat surfaces and circumferences – while optical notch detection ensures precise pre-alignment before sawing or grinding processes.

Features and Benefits

Compact and connected

Designed to integrate effortlessly with any automation or processing system, XRD-OEM enables a streamlined, efficient, and continuous operation. Its compact form and standard industrial interfaces ensure that it fits easily into any manufacturing setup and works well with your existing instruments and systems.

Compact and connected

Tough enough for your process

Built for resilience, XRD-OEM can be deployed in whichever environment you need it, including in grinding and sawing processes. It stays reliable and precise, even under demanding production conditions.

Tough enough for your process

Fast and precise

XRD-OEM offers automated precision where it matters the most. Precise determination of crystal orientation supports your high standards of quality control, while optimizing your processes for greater efficiency and overall quality.

XRD-OEM can determine crystal orientation on both flat surfaces and circumferences for extra versatility.

Fast and precise

Optical notch detection

Optical notch detection precisely identifies and characterizes flat and notch features on your samples – essential during the pre-alignment of large ingots before sawing or grinding processes.

Optical notch detection

Wide range of sample sizes

XRD-OEM can determine crystal orientation on both flat surfaces and circumferences for extra versatility.

Wide range of sample sizes

Key Applications

Production and processing
XRD-OEM is designed with your busy production environment in mind. As an in-line instrument, it is ready to be integrated into your automated high-throughput setup as an efficient solution for measuring and handling ingots, boules, and panels. Capable of measuring a range of compound semiconductor materials including Si, SiC, GaAs and many more, its air-cooling and compact size make it a powerful and cost-effective addition to your process.

Ingot pre-alignment before sawing or grinding
With its accurate pre-alignment capabilities, XRD-OEM enables precise positioning and orientation control before further processing steps.
Quality control
Rapid orientation measurements are essential in production, and XRD-OEM delivers quality data at speed. By fitting seamlessly into your new or existing automated processes, XRD-OEM helps you to prepare for the automated future of manufacturing today.

Specification

Notch position 0.005°
Notch depth 0.005 mm
Notch profile angle, typical < 0.5°
Diameter 0.02 mm
Flat position < 0.03°
Flat length < 0.3 mm

Support

Support services

  • Phone and remote support
  • Preventive maintenance and checkups
  • Flexible Customer Care Agreements
  • Performance certificates
  • Hardware and software upgrades
  • Local and global support

Expertise

  • Turnkey solutions for elemental and structural semiconductor metrology
  • Automation and consultancy
  • Training and education
Take the leap into automation with the in-line XRD-OEM.

Take the leap into automation with the in-line XRD-OEM.

Unlock enhanced productivity, superior quality control of your crystals, and optimized production processes even in challenging environments with the in-line XRD-OEM.
